syncMASTER^®
Synchronous Lift System

Durapac’s syncMASTER^® Synchronous Lift System delivers precise, computer-controlled multi-point hydraulic lifting for bridges, structures and heavy machinery. Safe, accurate and fully data-logged. The syncMASTER DSM-Series ensures loads are raised evenly and safely, minimising the risk of damage or accidents. Ideal for construction, mining and infrastructure where heavy machinery or structures need to be lifted with precision.

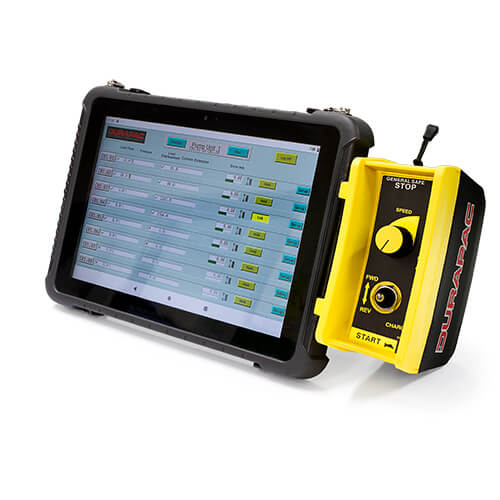

syncMASTER Synchronous Lift System Remote Operation with Tablet Controller

syncMASTER Synchronous Lift System Remote Operation using Mobile Phone / Cell Controller

Lift Monitoring and Data Storage

Full pressure and displacement data presentation are available on screen to monitor the lift in real time. Lift data is stored and able to be downloaded in a format suitable for importing into Excel for further analysis and record keeping. This gives a permanent record of the displacement and load on every cylinder at defined time intervals.

Variable Flow Control

Variable frequency drive motor gives a wider pump flow range. This is controlled by a joystick controller that governs flow and directional control of the hydraulic cylinders.

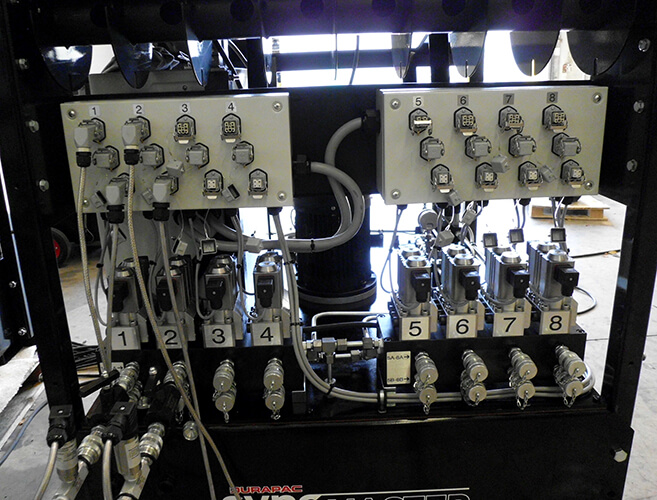

Control Valves

High cycle, high speed solenoid valves allow precise flow control. All valves are leak free and have a 100% duty cycle.

Pressure Transducers

Monitor load conditions at each lift point for maximum safety. Optional load cells are available for high precision weighing operations.

Stroke Transducers

High precision 40 pulses per mm linear transducers combined with high speed counter cards achieve precise positional control. Various stroke transducers are available including internal cylinder design. Optional tilt meters are also available.

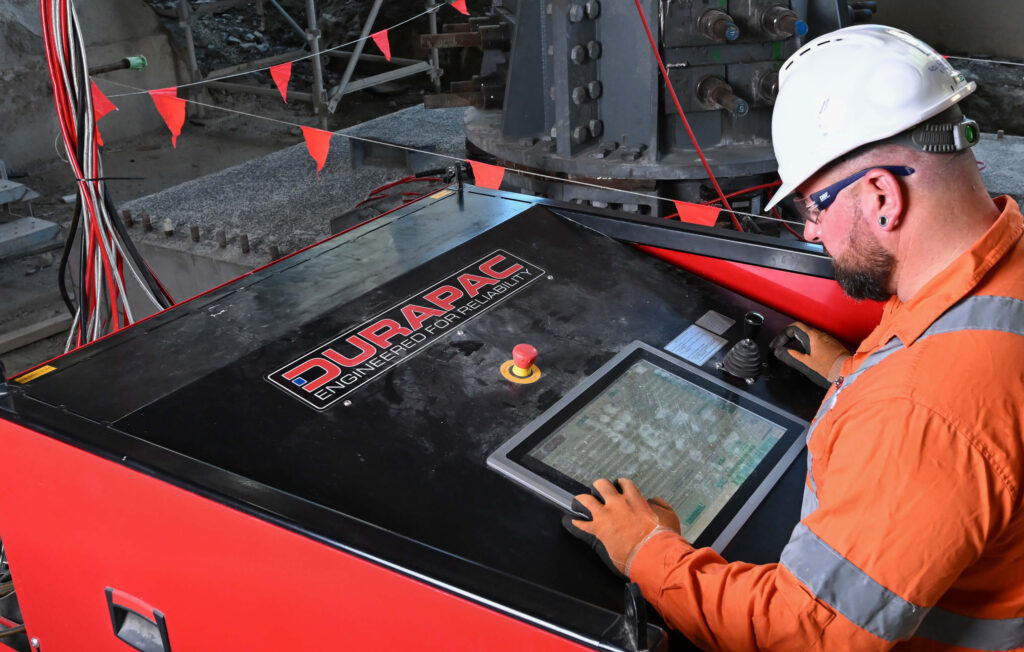

Integrated Touchscreen

17" full colour touchscreen withstands harsh environments. The glass is toughened making it both scratch and cut resistant.

INSTRUCTIONS

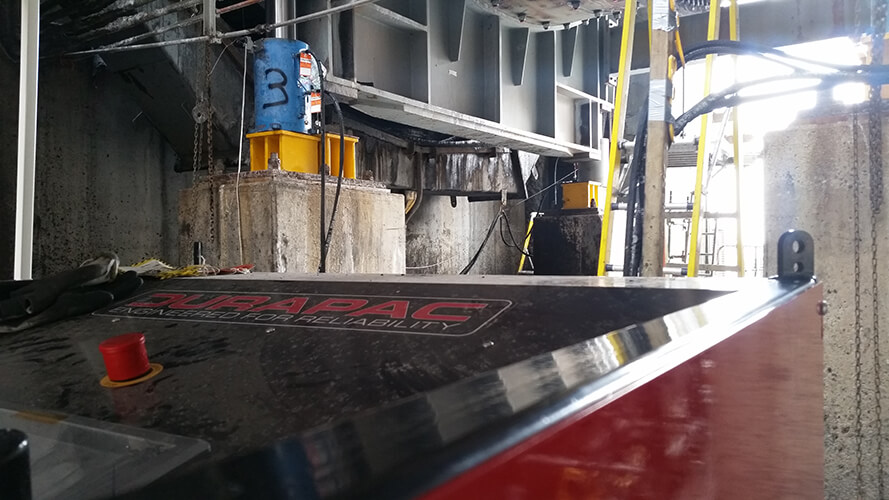

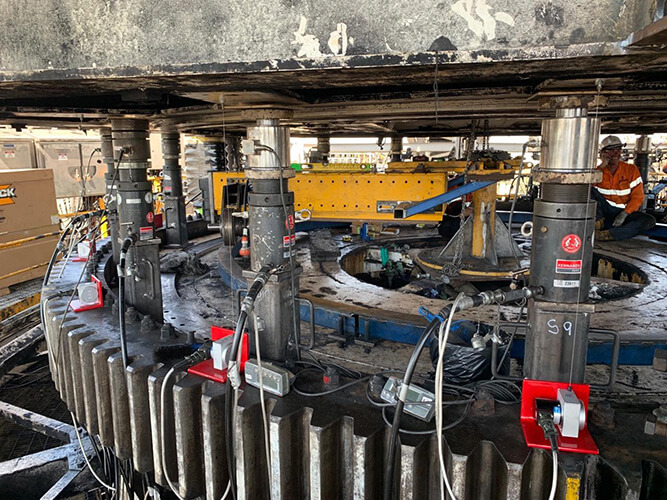

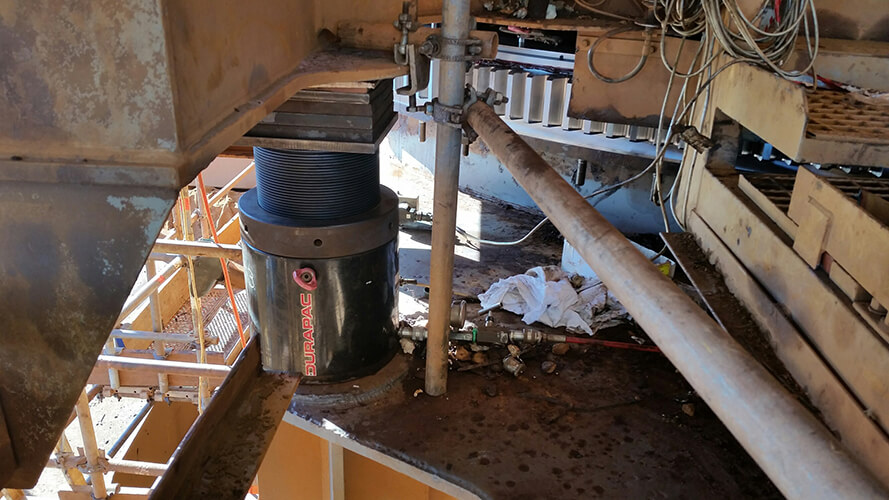

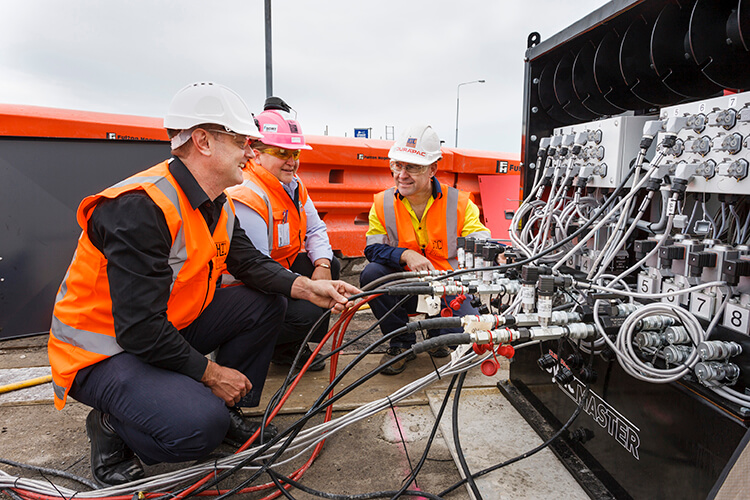

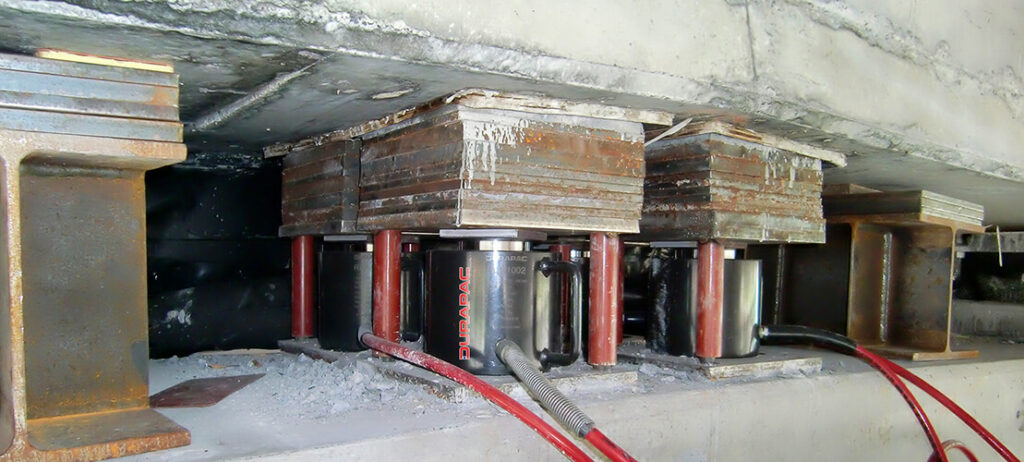

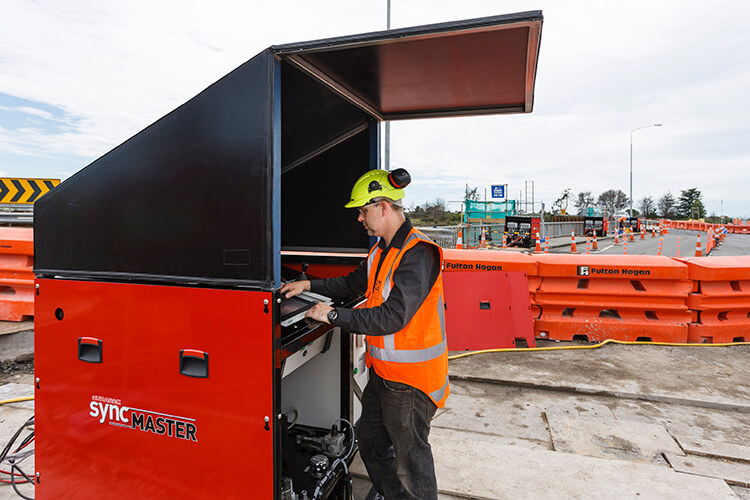

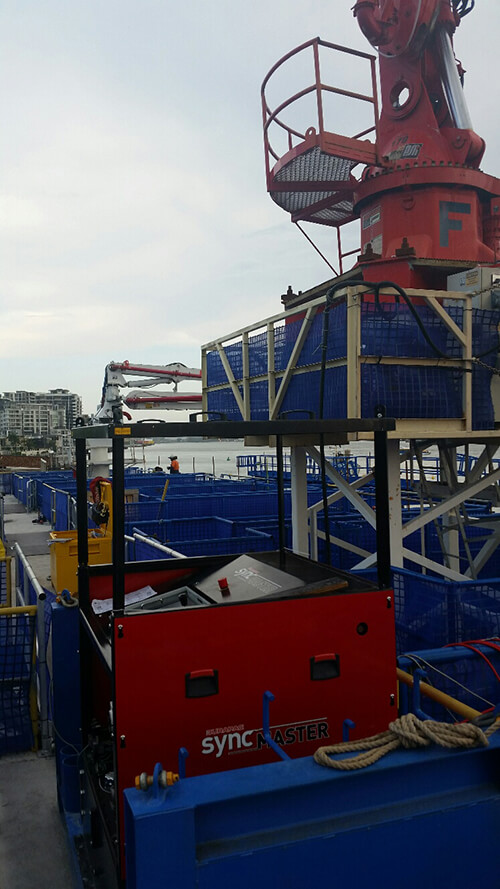

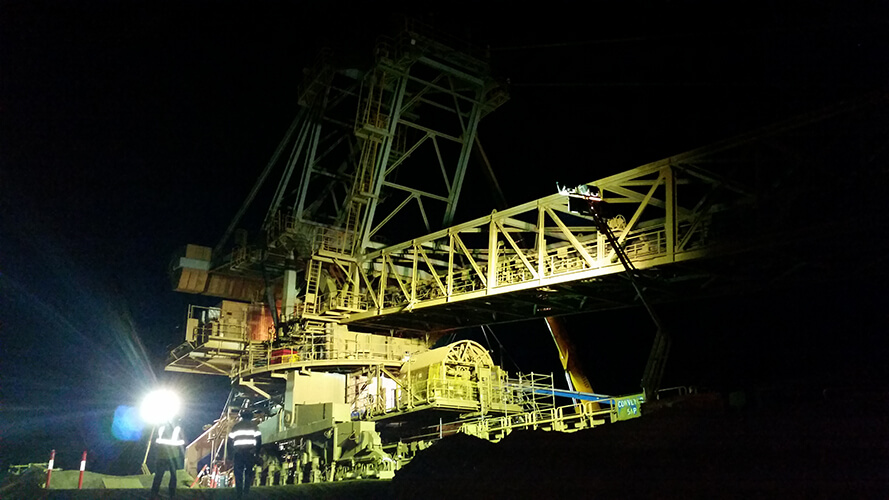

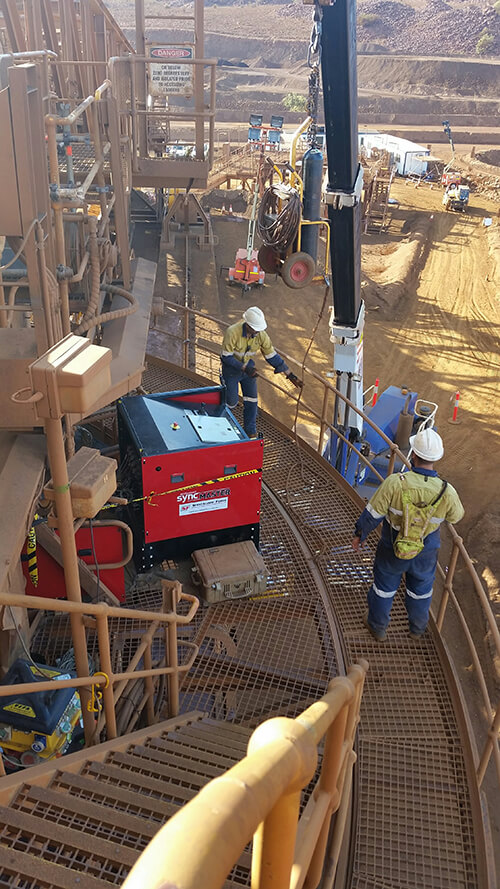

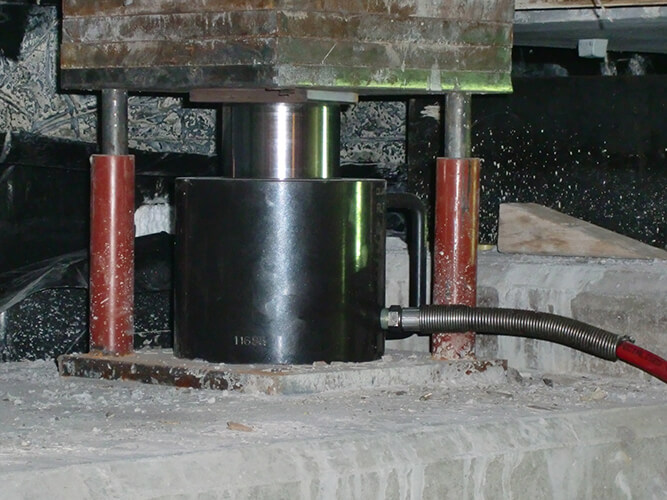

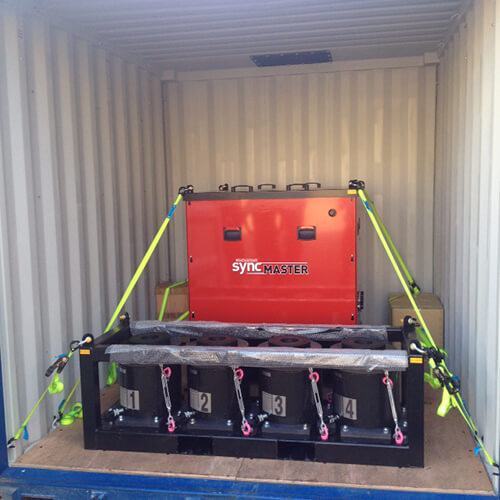

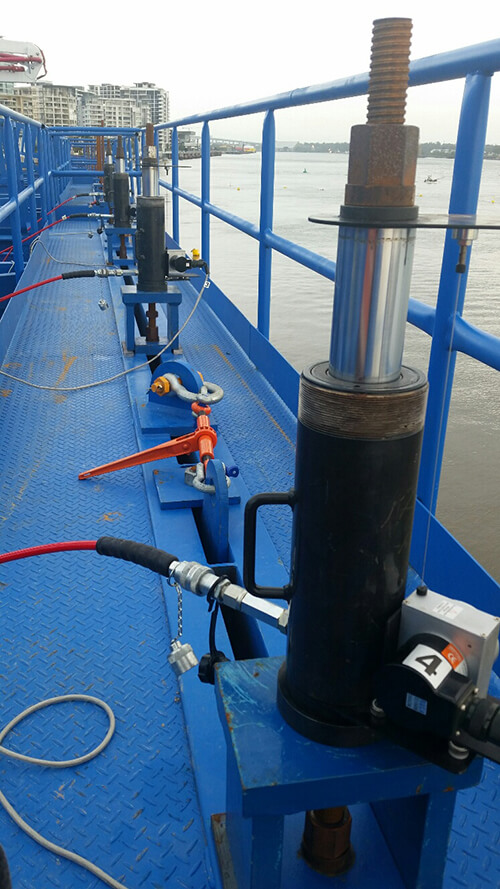

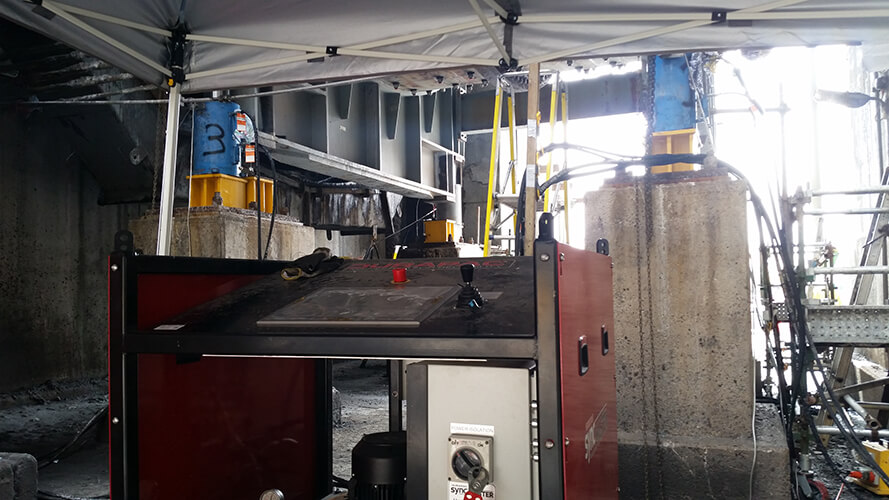

ACTION SHOTS

SPECIFICATIONS

CATALOGUE

Model No.	Hydraulic Outlets (A & B Ports)	Motor Size (kW)	Amps	Flow Rate (Lpm)	Pressure Rating (bar)	Usable Oil Capacity (L)	Dimensions W x L x H (mm)	Dry Weight (kg)
DSM4034	4	4.0	8.85	2.4	700	300	1,120 x 1,210 x 1,350	620
DSM4038	8	4.0	8.85	2.4	700	300	1,120 x 1,210 x 1,350	700
DSM7548	8	7.5	13.40	4.8	700	500	1,120 x 1,210 x 1,485	950
DSM40312	12	4.0*	8.85	2.4	700	300**	1,120 x 1,210 x 1,485	780
DSM40316	16	4.0*	8.85	2.4	700	300**	1,160 x 1,210 x 1,350	860
DSM40320	20	4.0*	8.85	2.4	700	300	1,200 x 1,210 x 1,350	940

Motor can run on 400 Volt 50 Hz 3 Phase OR 440 - 480 Volt 60 Hz 3 Phase
* 7.5 kW option available
** 500 L option available

Model No.	Hydraulic Outlets (A & B Ports)	Motor Size (hp)	Amps	Flow Rate (gal)	Pressure Rating (psi)	Usable Oil Capacity (gal)	Dimensions W x L x H (ft)	Dry Weight (lbs)
DSM4034	4	10	8.85	48	10,153	198	485 x 588 x 846	28111
DSM4038	8	10	8.85	48	10,153	1509	485 x 588 x 846	9874
DSM7548	8	18	13.40	80	10,153	1547	485 x 588 x 846	4545
DSM40312	12	44*	8.85	48	10,153	666**	485 x 588 x 846	999
DSM40316	16	44*	8.85	48	10,153	666**	485 x 588 x 846	888
DSM40320	20	44*	8.85	48	10,153	666	485 x 588 x 846	999

Motor can run on 115 Volt 68 hp 3 Phase OR 440 - 480 Volt 115 hp 3 Phase
* 88 hp option available
** 1,555 gal option available

Standard Inclusions	Optional Items
Pressure transducers	Externally mounted stroke encoder
Analogue pressure gauge	Internally mounted stroke encoder
Adjustable pressure relief valves (Adv. & Ret.)	Dual encoder inputs per lift point
Oil temperature alarm	Remote tablet & joystick for full function remote control
Oil filter alarm	Remote tech login (RTL) for support, monitoring & auto email alerts
Emergency stop
17" full colour integrated touchscreen
Flow control valves
Powder coated finish

Model Number	Cylinder Capacity ton*	Cylinder Capacity kN	Stroke (mm)	Cylinder Effective Area (cm²)	Oil Capacity (cm³)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Cylinder Bore Diameter (mm)	Piston Rod Diameter (mm)	Base to Advance Port (mm)	Standard Load Cap Diameter (mm)	Load Cap Protrusion from Piston Rod (mm)	Piston Rod Internal Thread	Piston Rod Thread Length (mm)	Collar Thread	Collar Thread Length (mm)	Weight (kg)	Optional Tilt Saddle Model Number	Model Number	Handle Type
RG-50	5	45	16	6.5	10	41	57	58	28.7	25.4	19	**	**	**	**	-	-	1.0	-	RG-50	-
RG-51	5	45	25	6.5	16	110	135	38	28.7	25.4	19	25	6	3/4"-16UNF	14	1-1/2"-16UN	28	1.0	-	RG-51	-
RG-53	5	45	76	6.5	49	165	241	38	28.7	25.4	19	25	6	3/4"-16UNF	14	1-1/2"-16UN	28	1.5	-	RG-53	-
RG-55	5	45	127	6.5	82	215	342	38	28.7	25.4	19	25	6	3/4"-16UNF	14	1-1/2"-16UN	28	1.9	-	RG-55	-
RG-57	5	45	177	6.5	114	273	450	38	28.7	25.4	19	25	6	3/4"-16UNF	16	1-1/2"-16UN	28	2.4	-	RG-57	-
RG-59	5	45	232	6.5	150	323	555	38	28.7	25.4	19	25	6	3/4"-16UNF	16	1-1/2"-16UN	28	2.8	-	RG-59	-
RG-101	10	101	26	14.5	38	89	115	57	42.9	38.1	19	-	-	#10-24UNC	6	2-1/4"-14UN	26	1.8	-	RG-101	-
RG-102	10	101	54	14.5	78	121	175	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	2.3	TSX-10	RG-102	-
RG-104	10	101	105	14.5	152	171	276	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	3.3	TSX-10	RG-104	-
RG-106	10	101	156	14.5	226	247	403	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	4.4	TSX-10	RG-106	-
RG-108	10	101	203	14.5	294	298	501	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	5.4	TSX-10	RG-108	-
RG-1010	10	101	257	14.5	372	349	606	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	6.4	TSX-10	RG-1010	-
RG-1012	10	101	304	14.5	440	400	704	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	6.8	TSX-10	RG-1012	-
RG-1014	10	101	356	14.5	515	450	806	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	8.2	TSX-10	RG-1014	-
RG-151	15	142	25	20.3	51	124	149	69	50.8	41.4	19	38	9	1"-8UNC	25	2-3/4"-16UN	30	3.3	TSX-10	RG-151	-
RG-152	15	142	51	20.3	103	149	200	69	50.8	41.4	19	38	9	1"-8UNC	25	2-3/4"-16UN	30	4.1	TSX-10	RG-152	-
RG-154	15	142	101	20.3	205	200	301	69	50.8	41.4	19	38	9	1"-8UNC	25	2-3/4"-16UN	30	5.0	TSX-10	RG-154	-
RG-156	15	142	152	20.3	308	271	423	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	6.8	TSX-10	RG-156	-
RG-158	15	142	203	20.3	411	322	525	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	8.2	TSX-10	RG-158	-
RG-1510	15	142	254	20.3	515	373	627	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	9.5	TSX-10	RG-1510	-
RG-1512	15	142	305	20.3	618	423	728	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	10.9	TSX-10	RG-1512	-
RG-1514	15	142	356	20.3	721	474	830	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	11.8	TSX-10	RG-1514	-
RG-251	25	232	26	33.2	86	139	165	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	5.9	TSX-50	RG-251	-
RG-252	25	232	50	33.2	166	165	215	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	6.4	TSX-50	RG-252	-
RG-254	25	232	102	33.2	339	215	317	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	8.2	TSX-50	RG-254	-
RG-256	25	232	158	33.2	524	273	431	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	10.0	TSX-50	RG-256	-
RG-258	25	232	210	33.2	697	323	533	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	12.2	TSX-50	RG-258	-
RG-2510	25	232	261	33.2	866	374	635	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	14.1	TSX-50	RG-2510	-
RG-2512	25	232	311	33.2	1,032	425	736	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	16.3	TSX-50	RG-2512	-
RG-2514	25	232	362	33.2	1,205	476	838	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	17.7	TSX-50	RG-2514	-
RG-308	30	295	209	42.1	878	387	596	101	73.2	57.2	57	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	18.1	TSX-50	RG-308	-
RG-502	50	498	51	71.2	363	176	227	127	95.3	79.5	33	71	2	-	-	5"-12UN	55	15.0	TSX-100	RG-502	-
RG-504	50	498	101	71.2	719	227	328	127	95.3	79.5	33	71	2	-	-	5"-12UN	55	19.1	TSX-100	RG-504	♠
RG-506^†	50	498	159	71.2	1,132	282	441	127	95.3	79.5	35	71	2	-	-	5"-12UN	55	23.1	TSX-100	RG-506	♣
RG-5013	50	498	337	71.2	2,400	460	797	127	95.3	79.5	35	71	2	-	-	5"-12UN	55	37.6	TSX-100	RG-5013	♦
RG-756	75	718	156	102.6	1,600	285	441	146	114.3	95.3	30	71	5	-	-	5-3/4"-12UN	44	29.5	TSX-100	RG-756	♦
RG-7513	75	718	333	102.6	3,415	492	825	146	114.3	95.3	30	71	5	-	-	5-3/4"-12UN	44	59.0	TSX-100	RG-7513	♦
RG-1004	100	933	102	133.3	1,354	205	306	177	130.3	104.9	30	71	2	-	-	6-7/8"-12UN	44	33.1	TSX-100	RG-1004	♣
RG-1006	100	933	168	133.3	2,239	357	525	177	130.3	104.9	41	71	2	-	-	6-7/8"-12UN	44	59.0	TSX-100	RG-1006	♦
RG-1008	100	933	203	133.3	2,708	357	560	177	130.3	104.9	41	71	2	-	-	6-7/8"-12UN	44	61.0	TSX-100	RG-1008	♦
RG-10010	100	933	260	133.3	3,465	449	709	177	130.3	104.9	41	71	2	-	-	6-7/8"-12UN	44	72.6	TSX-100	RG-10010	♦

* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** RG-50 Cylinder has non-removable grooved load cap and no collar thread
† RG-506 cylinder will not fit into jacking base without welded handle being removed
HANDLE TYPES: ♣ WELDED ♦ EYEBOLT ♠ THREAD

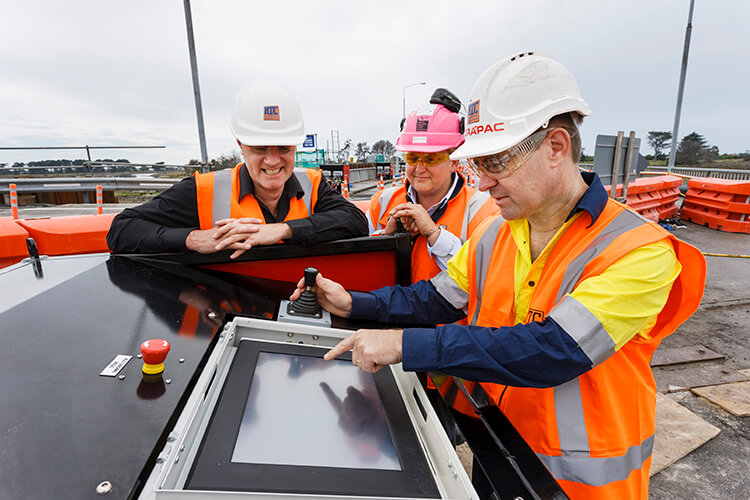

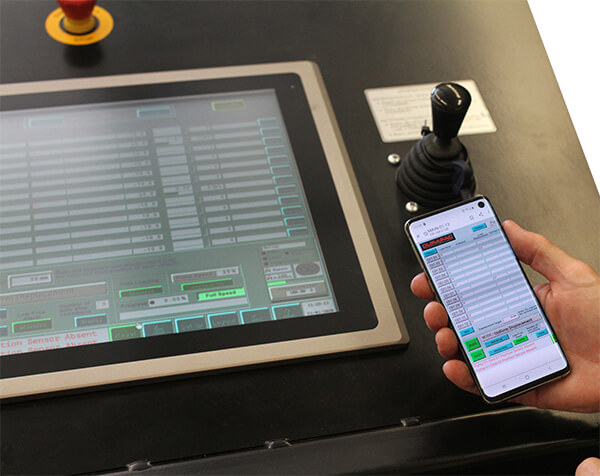

17" Integrated Screen & Remote Operation with Mobile Phone / Cell Controller

syncMASTER Remote Operation using Mobile Phone / Cell Controller

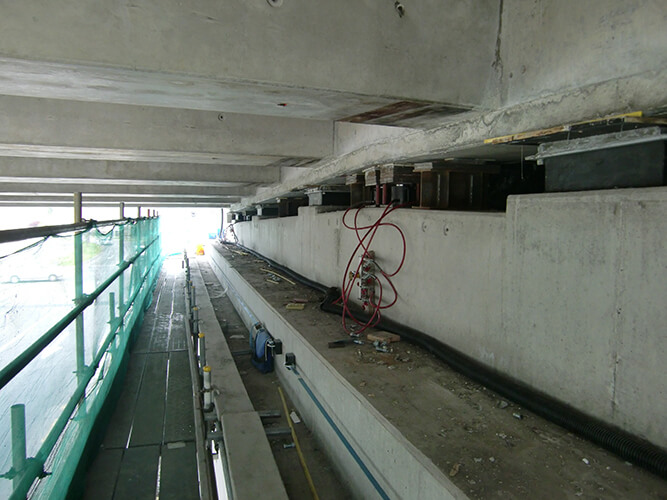

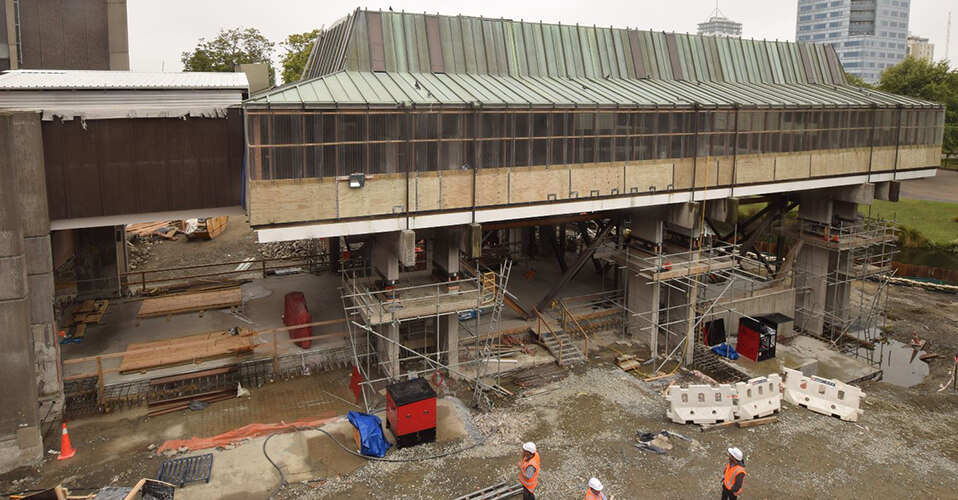

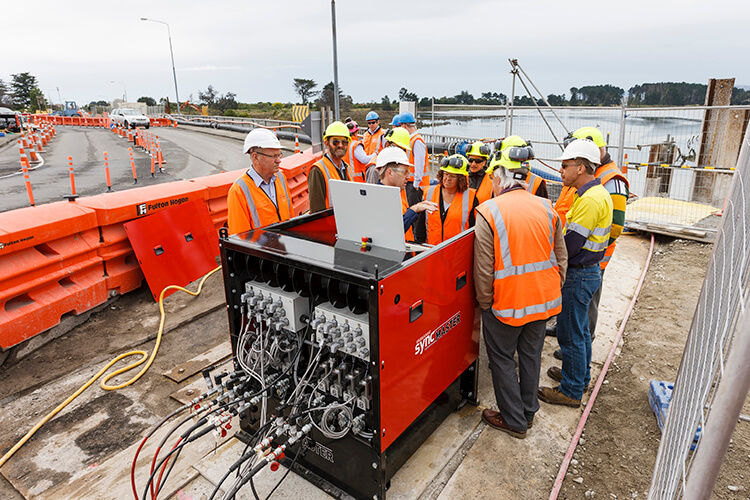

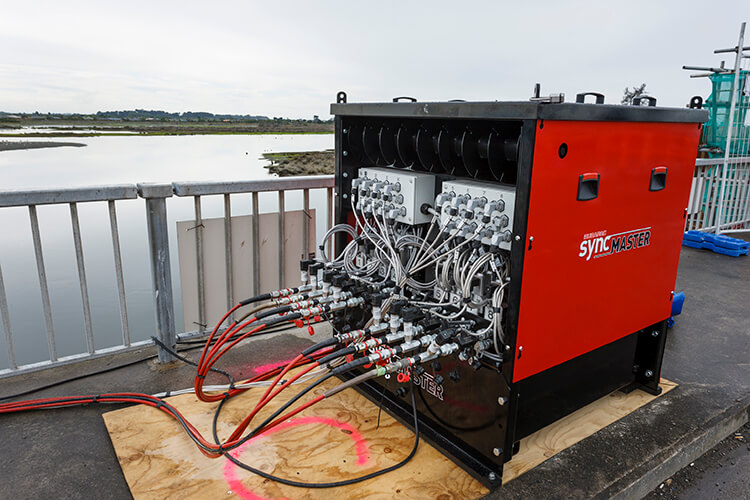

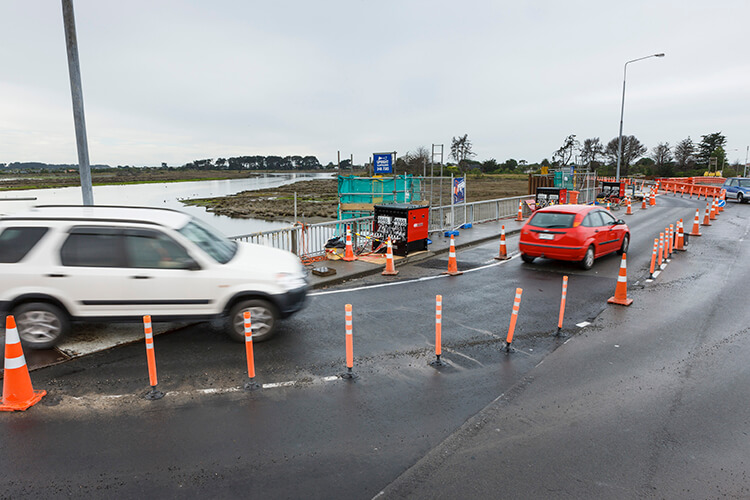

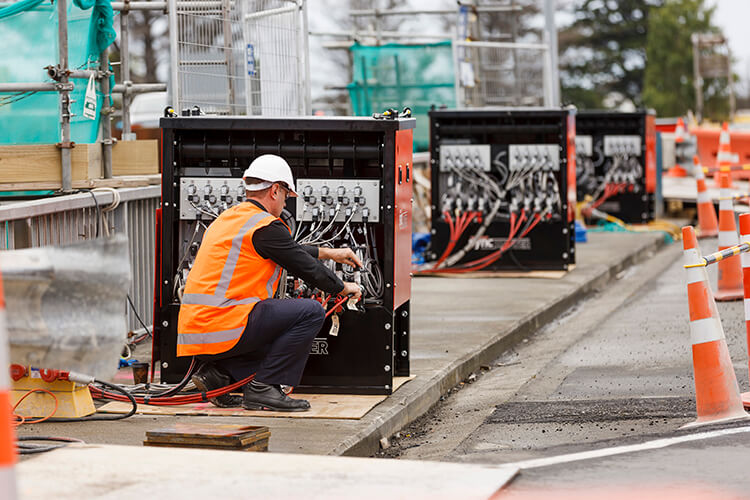

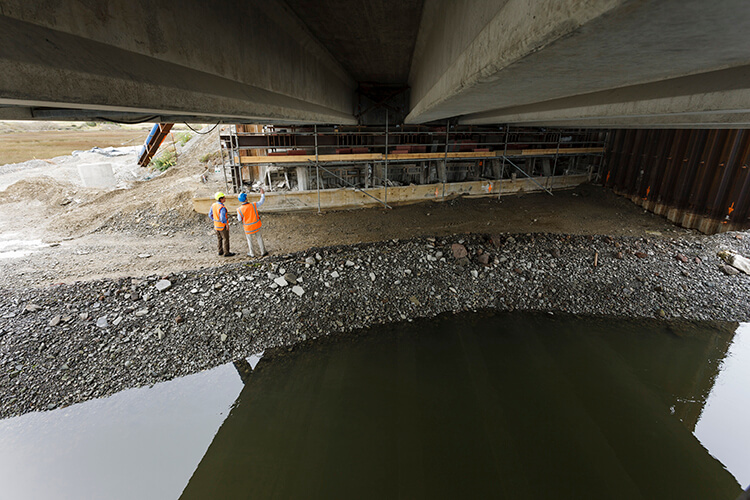

syncMASTER Sync Bridge Lift - Christchurch NZ

Optional Extensions, Tilt Saddles & Load Caps

Model Number	Capacity (Tons)	Description	Diameter (mm)	Height (mm)	Spigot Depth (mm)	Spigot Diameter (mm)	Weight (kg)
SDE100-100	70/100	100 mm Extension	126	100	60	50	7
SDE100-150	70/100	150 mm Extension	126	150	60	50	7
SDE100-200	70/100	200 mm Extension	126	200	60	50	7
SDE100-300	70/100	300 mm Extension	126	300	60	50	13
SDE100-400	70/100	400 mm Extension	126	400	60	50	13
SDLC-100	70/100	Serrated Steel Load Cap *	112	22	60	50	3
SDS-100N	70/100	Serrated Tilt Saddle	108	50	60	50	5
SDE150-150	150	150 mm Extension	126	150	60	50	7
SDE150-200	150	200 mm Extension	126	200	60	50	7
SDE150-250	150	250 mm Extension	126	250	60	50	7
SDE150-300	150	300 mm Extension	126	300	60	50	13
SDE150-350	150	350 mm Extension	141	350	60	50	13
SDLC-150	150	Serrated Steel Load Cap *	126	22	60	50	3
SDS-150/200N	150/200	Serrated Tilt Saddle	126	59	60	50	5
SDE200-100	200	100mm Extension	141	100	60	50	8
SDE200-150	200	150mm Extension	141	150	60	50	8
SDE200-200	200	200 mm Extension	141	200	60	50	15
SDE200-300	200	300 mm Extension	141	300	60	50	15
SDE200-400	200	400 mm Extension	141	400	60	50	15
SDE200-500	200	500 mm Extension	141	500	60	50	15
SDLC-200	200	Serrated Steel Load Cap*	126	22	60	50	4

WARNING - Do not stack extensions
* Supplied as standard

Model Number	Jack Capacity Metric (tonne)	Jack Capacity US (ton)*	Jack Capacity (kN)	Cylinder Effective Area (cm²)	Collapsed Height (mm)**	Stroke (mm)	Maximum Lift Height (mm)***	Oil Tank Capacity (L)	Weight (kg)
SDL-07068-PD	70	77	686	143	680	404	1,408	24	390
SDL-07081-PD	70	77	686	143	812	535	1,680	24	420
SDL-10068-PD	100	110	980	143	680	404	1,408	24	390
SDL-10081-PD	100	110	980	143	812	535	1,680	24	420
SDL-15068-PD	135	150	1,324	254	680	406	1,408	24	470
SDL-15096-PD	135	150	1,324	254	964	685	1,680	24	550
SDL-20068-PD	181	200	1,781	254	680	406	1,408	24	470
SDL-20096-PD	181	200	1,781	254	964	685	1,680	24	550

A non-POWERDRIVE option is also available - to order, use jack model number without "-PD" suffix (eg. SDL-10068)
* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** Includes load cap height of 22 mm
*** Maximum lift height for AS/NZS 2538:2004 Vehicle Support Stand Rating
